Cantilever Rack
Product Introduction
At BHD Vietnam, we specialize in high-strength structural cantilever racking systems engineered to support extra-long and heavy-duty loads with confidence. Ideal for storing items such as lumber, steel bars, and pipes, our cantilever racks provide exceptional durability, easy forklift access, and flexible storage configurations. Designed for industrial and commercial applications, BHD’s cantilever solutions deliver reliable performance in even the most demanding warehouse environments.
What Is a Structural Cantilever Rack?
A structural cantilever rack is a type of storage system that features horizontal arms extending from a central vertical column with no front-facing support. This open design makes it easy to load and unload long, bulky materials like timber, pipes, sheet metal, and tubing.
Unlike roll-formed racks, structural versions are made from hot-rolled steel, giving them the strength to handle heavier loads and withstand harsher conditions. If you’re storing items that don’t fit on traditional shelves, a cantilever rack is your best solution.
KEY FEATURES
- Double-Sided Access: Allows forklifts to access goods from both sides, improving workflow and maximizing aisle efficiency.
- Perfect for Long or Bulky Items: Designed to store items like lumber, steel tubes, pipes, fabric rolls, and furniture with ease.
- Open-Front Design: No front posts reduce forklift impact risk and speed up loading and unloading operations.
- Custom Heights up to 32 Feet: Available in various column heights – up to 32 feet – to suit your specific storage requirements.
- Strong Steel Construction: Built with high-strength structural steel to handle heavy loads and ensure long-lasting performance.

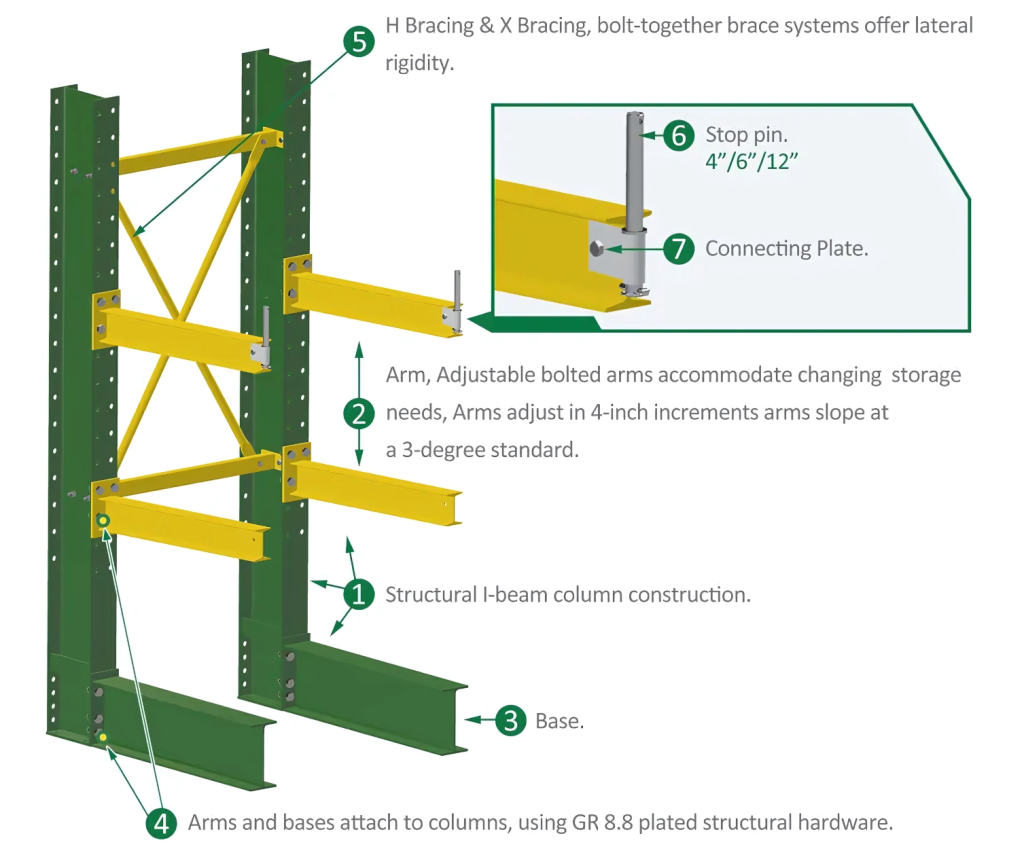

MAIN COMPONENTS
- The structural cantilever columns are manufactured using W9.7″, W11.7″ section and base section is the same as column section;
- Arms are produced using profile 4″, profile 4.7″ or profile 5.5″;
- All cantilever columns are vertically adjustable on 4″ centers;
For W9.7″ Upright:
| 248x124x5x8 (W9.7″) | Upright Loading Capacity (Lbs) | ||||
| Height | Length | ||||
| 36″ | 40″ | 48″ | 60″ | 72″ | |
| 8′ | 14,300 | 14,300 | 14,300 | 14,300 | 13,640 |
| 12′ | 12,980 | 12,980 | 12,980 | 11,880 | 9,900 |
| 16′ | 12,760 | 12,760 | 11,660 | 9,460 | 7,700 |
| 20′ | 12,320 | 11,660 | 9,680 | 7,700 | 6,600 |
For W11.7″ Upright:
| 298×149×5.5×8 (W11.7″) | Upright Loading Capacity (Lbs) | ||||
| Height | Length | ||||
| 36″ | 40″ | 48″ | 60″ | 72″ | |
| 28′ | 9,100 | 8,180 | 6,820 | 5,460 | 4,550 |
For Arm Loading Capacity:
100x68x4.5 (4″) – L48″: 2,640 Lbs
120x74x5 (4.7″) – L48″: 3,960 Lbs
OPTIONAL FEATURES

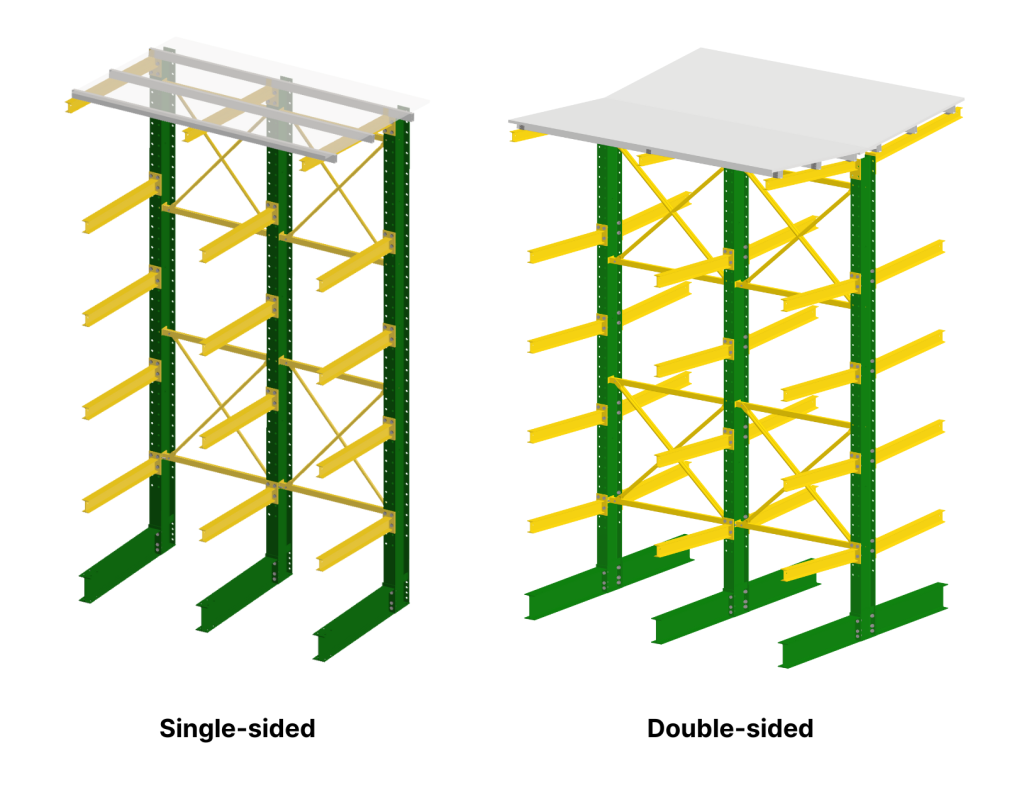

- Single-and double-sided systems
- Narrow-aisle configurations with guardrails for side-load forklifts
- Stop pins for arms and bases – bolted
POWDER COATING COLOR OPTION
PACKAGING & LOADING
Our commitment to professional packaging skills goes beyond merely ensuring safe delivery; it also serves to streamline processes, saving time and minimizing the risk of damage during loading and unloading operations.
WHY CHOOSE BHD VIETNAM RACKING FACTORY?
- Experienced Manufacturer – Serving international markets with years of racking expertise.
- Global Reach – With factories in Vietnam and warehouses in the U.S. and Australia, we support fast and reliable shipments worldwide.
- Reliable Partner – We build long-term partnerships through dependable service, custom solutions, and consistent product quality.
- Export-Focused – We specialize in manufacturing for export, with a deep understanding of logistics, container optimization, and global compliance.
