60 Longspan Shelving
Product Introduction

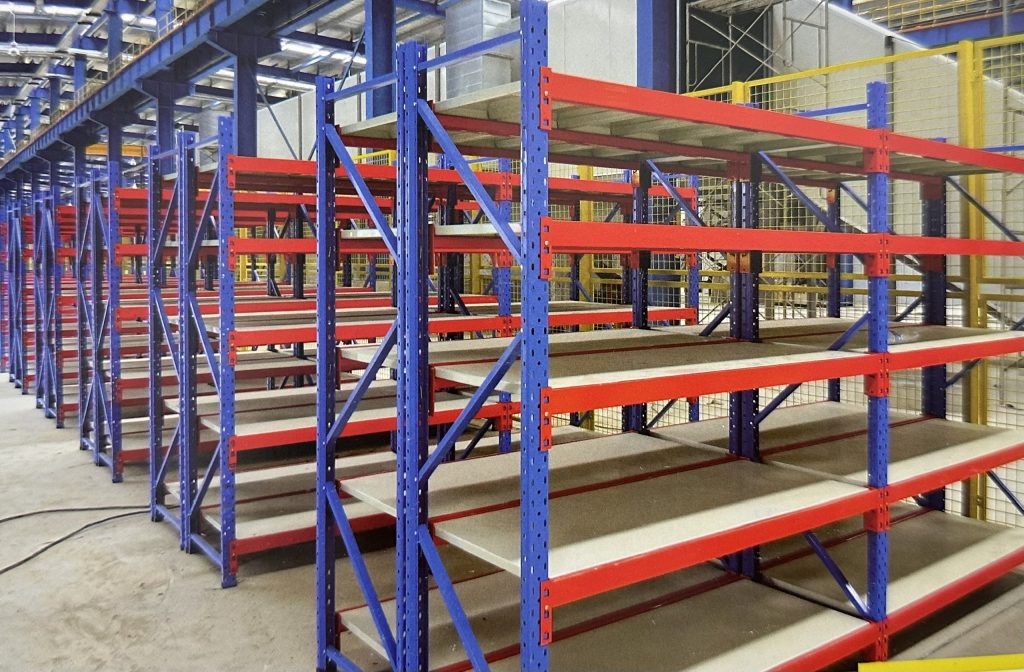

The 60 Long Span Shelving system is composed of frames, beams, and shelf panels. It can be customized with various decking options such as particle board, wire mesh, zinc-coated steel panels, or rolled metal decking – making it suitable for a wide range of storage environments. This system is ideal for hand-loaded storage of bulky or irregularly shaped items. Compared to the 55 Long Span Shelving, the 60 model offers higher load capacity at the same dimensions, as the panels rest directly on the beams. Each level supports between 300kgs and 800kgs, depending on the configuration.
KEY FEATURES
- Loading Capacity (300 – 800kgs/level): Designed for strength, each level supports 300 to 800kg, making it ideal for medium-duty storage of bulky or heavy items.
- Adjustable and Modular: Tool-free assembly with easily adjustable shelf heights, allowing quick changes to fit varying product sizes.
- Durable Finish: Made from quality steel with a corrosion-resistant powder coating, ensuring long-lasting performance.
- Wide Application: Perfect for hand-loaded storage in warehouses, workshops, retail backrooms, and storerooms.
MAIN COMPONENTS

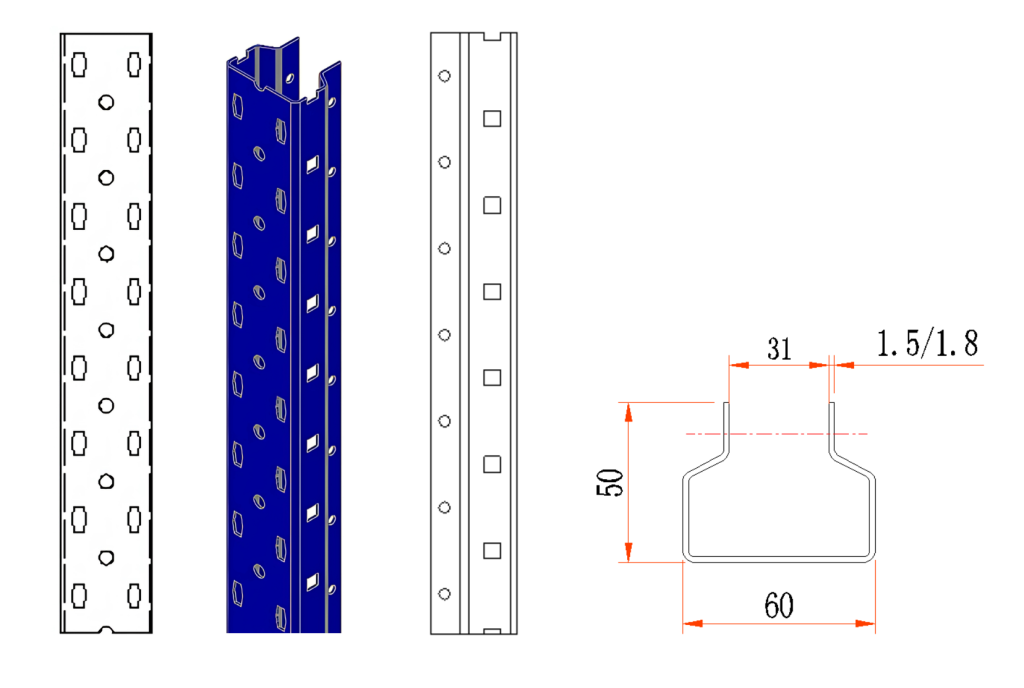

POST

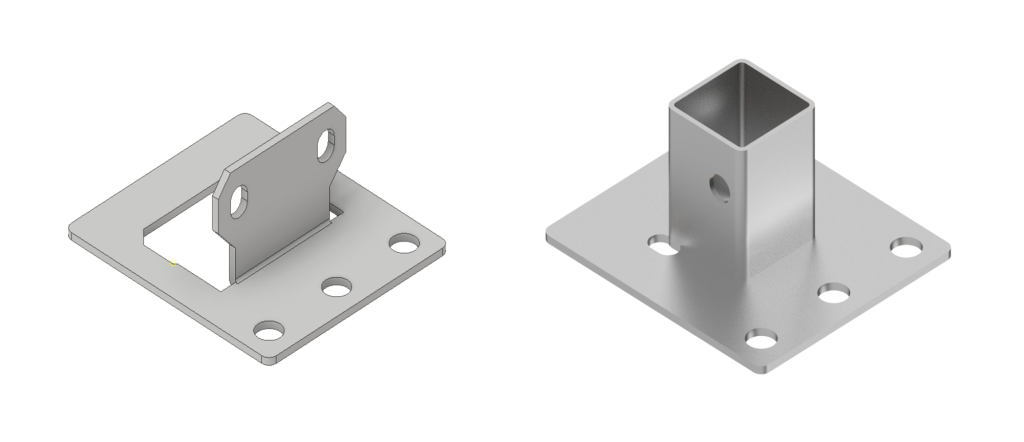

The baseplate anchors the upright to the floor, ensuring stability and load distribution.
| Frame Loading Capacity (Tons) | ||
| Opening for frame bracing | 60×50×1.5 | 60×50×1.8 |
| 1.0m | 4 | 5 |
| 1.4m | 4 | 5 |
| 1.8m | 4 | 5 |
| 2.0m | 3.6 | 4.5 |
| 2.2m | 3.2 | 4 |
| 2.4m | 2.8 | 3.5 |
| 2.6m | 2.4 | 3 |

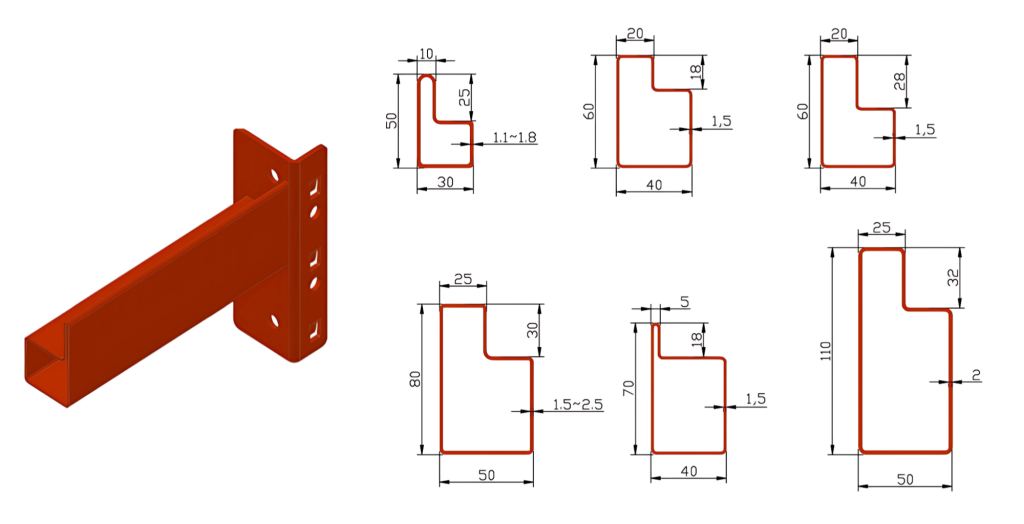

P BEAM
Length: Standard lengths are 900mm, 1200mm, 1500mm, 1800mm, 2100mm, 2400mm, 2700mm.
Beam Loading Capacity
60x40x18/28×1.5 – L900: 1,406 Kgs
60x40x18/28×1.5 – L1200: 1,055 Kgs
60x40x18/28×1.5 – L1500: 708 Kgs

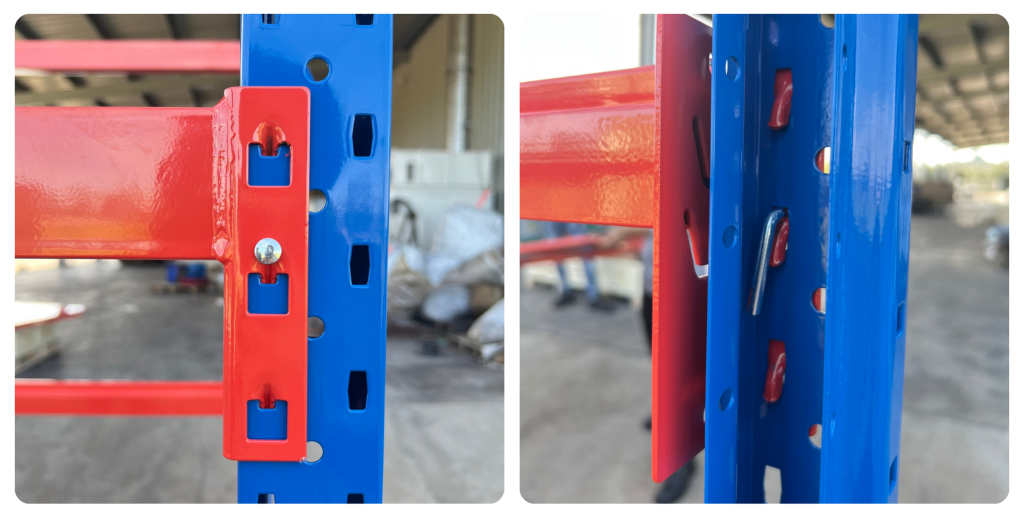

Safety Pin

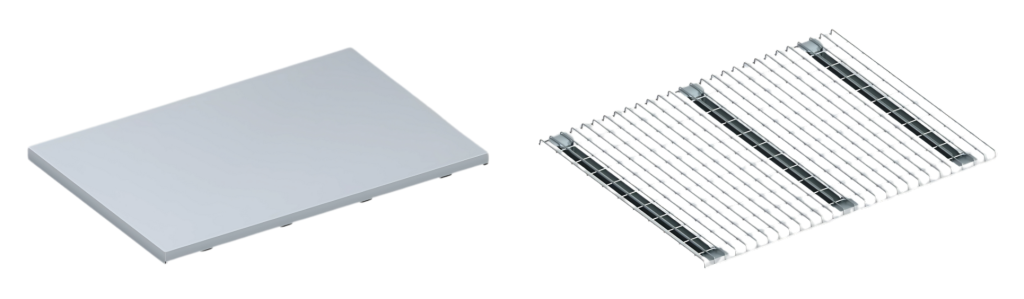

STEEL PANEL
There are so many types of panel which use in the 60 longspan shelving such as steel panel, plywood panel, wire decking and galvanized sheet.
RACK ACCESSORIES
PACKAGING & LOADING
Our packaging and loading process is meticulously designed to ensure each product arrives safe, secure, and ready for installation. Beyond protecting goods in transit, our professional packaging approach helps streamline operations – saving time and reducing the risk of damage during loading and unloading.
WHY CHOOSE BHD VIETNAM RACKING FACTORY?
- Experienced Manufacturer – Serving international markets with years of racking expertise.
- Global Reach – With factories in Vietnam and warehouses in the U.S. and Australia, we support fast and reliable shipments worldwide.
- Reliable Partner – We build long-term partnerships through dependable service, custom solutions, and consistent product quality.
- Export-Focused – We specialize in manufacturing for export, with a deep understanding of logistics, container optimization, and global compliance.
